Enhancing UX: Replacing Manual Ordering with Intuitive Drag-and-Drop

The Frustration of Manual Ordering

Ever found yourself meticulously typing '1', '2', '3' into an 'order' field, only to realize you missed an item and now have to renumber everything? This common developer and user frustration was precisely what we aimed to eliminate in the pqrs project. Our goal was to modernize the management of filter options by replacing a cumbersome manual 'Orden' column with an intuitive drag-and-drop reordering system.

Why Manual Order Columns Fall Short

Traditional methods for ordering lists often involve a dedicated numeric column that users manually update. While straightforward to implement initially, this approach presents several challenges:

• Poor User Experience: Users must remember and input sequential numbers, which is tedious and error-prone.
• Maintenance Overhead: Inserting or deleting items requires re-sequencing adjacent entries, a task often left to the user.
• Scalability Issues: As lists grow longer, managing order numbers becomes increasingly difficult.

The solution was clear: leverage modern web capabilities to provide a seamless visual reordering experience.

Implementing Dynamic Reordering: A Full-Stack Approach

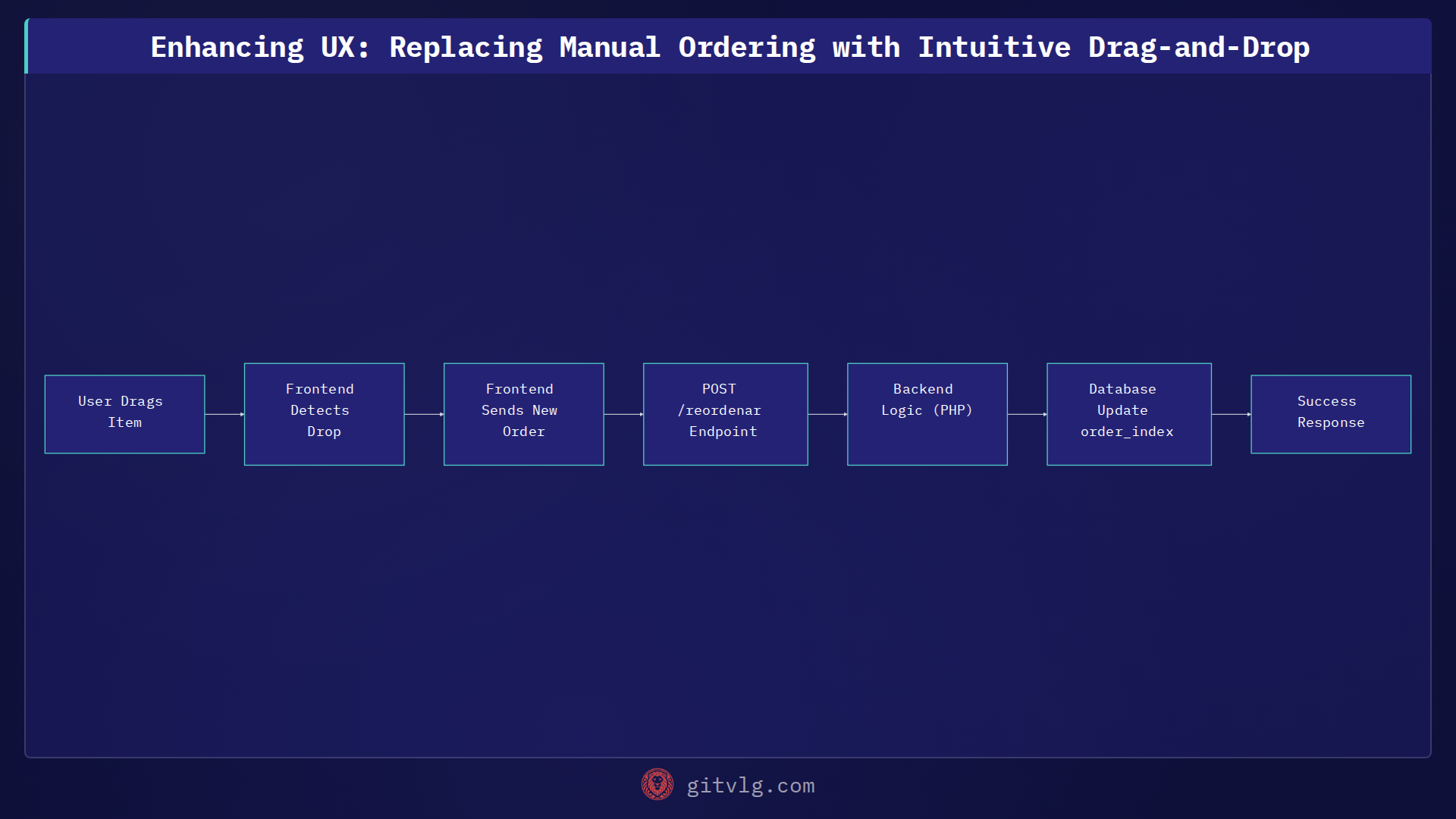

Our transition to drag-and-drop reordering involved updates across the entire application stack, from the frontend user interface to the backend API and database.

Frontend: The Power of HTML5 Drag-and-Drop

The most visible change was the removal of the 'Orden' input field from add forms and edit modals. Instead, list items are now draggable, allowing users to visually rearrange them. This typically involves the HTML5 Drag-and-Drop API or a lightweight JavaScript library that abstracts it, handling events like dragstart, dragover, and drop to update the visual order of elements on the page.

Once the user finishes reordering, the frontend collects the new sequence of item IDs and sends it to the backend.

Backend: Processing the New Order (PHP Example)

To persist the user's changes, a new API endpoint was introduced: POST /configuracion/reordenar. This endpoint receives an ordered list of item IDs and updates their corresponding positions in the database.

The backend logic, often residing in a controller or service, iterates through the received IDs and assigns a new sequential order_index to each item. For instance, in a PHP application, this might look something like this:

<?php

namespace App\Http\Controllers;

use Illuminate\Http\Request;
use App\Models\ConfigItem; // Assuming a model for your configuration items
use Illuminate\Support\Facades\DB;

class ConfigController extends Controller
{
    public function reorder(Request $request)
    {
        $orderedIds = $request->input('ordered_ids'); // Expects an array of IDs

        if (!is_array($orderedIds) || empty($orderedIds)) {
            return response()->json(['message' => 'Invalid input'], 400);
        }

        DB::beginTransaction();
        try {
            foreach ($orderedIds as $index => $id) {
                ConfigItem::where('id', $id)->update(['order_index' => $index + 1]);
            }
            DB::commit();
            return response()->json(['message' => 'Order updated successfully']);
        } catch (\Exception $e) {
            DB::rollBack();
            // Log error: $e->getMessage()
            return response()->json(['message' => 'Failed to update order'], 500);
        }
    }
}

This reorder method receives an array of IDs from the frontend and updates the order_index column for each item in the database. A database transaction ensures that all updates succeed or fail together, maintaining data integrity.

New Item Creation

Another key aspect was ensuring new items automatically receive a valid order_index. When a new item is created, the system now automatically assigns it the next available sequential order, typically MAX(order_index) + 1. This eliminates the need for manual input and ensures newly added items are always at the end of the list, ready to be reordered via drag-and-drop.

Conclusion

Migrating from manual ordering to an interactive drag-and-drop system significantly enhances the user experience, reduces errors, and simplifies data management for ordered lists. By combining HTML5 capabilities on the frontend with robust backend API logic, we've transformed a tedious task into an intuitive interaction. Consider adopting drag-and-drop for any lists in your applications that require user-defined ordering – your users will thank you for it!
