Evolving rifasvelez-web: Embracing Hexagonal Architecture for V2

In the rifasvelez-web project, our focus is on delivering a robust and maintainable web platform. Recently, a significant milestone was reached with the integration of V2 updates, fundamentally driven by an architectural shift towards Hexagonal Architecture. This upgrade was more than just a feature release; it was a strategic move to enhance the system's resilience and adaptability.

The Symptoms

As rifasvelez-web grew, we started noticing common challenges associated with tightly coupled systems. Changes in one part of the application, especially around data persistence or external service integrations, often had ripple effects across the entire codebase. Testing became more complex, and introducing new features required careful navigation through intertwined dependencies. The symptoms were subtle at first – slower development cycles, increased cognitive load for new developers, and a creeping fear of regression with every deployment.

The Investigation

Our investigation pointed towards the need for a clearer separation of concerns. The existing structure, while functional, lacked a distinct boundary between the core business logic and external details like databases or UI frameworks. We explored various architectural patterns, ultimately converging on Hexagonal Architecture, also known as Ports and Adapters. This pattern promised to insulate our core domain from external changes, making it technology-agnostic and significantly easier to test.

The Culprit

The 'culprit' wasn't a flaw in the code itself, but rather the natural evolution of a project without a strong, explicit architectural separation. Over time, the application's domain logic became implicitly tied to its infrastructure. For instance, a domain service might directly call a database repository, coupling it to a specific ORM or database technology. This made it difficult to swap out components or to test business rules in isolation without mock databases or complex setups.

The Fix

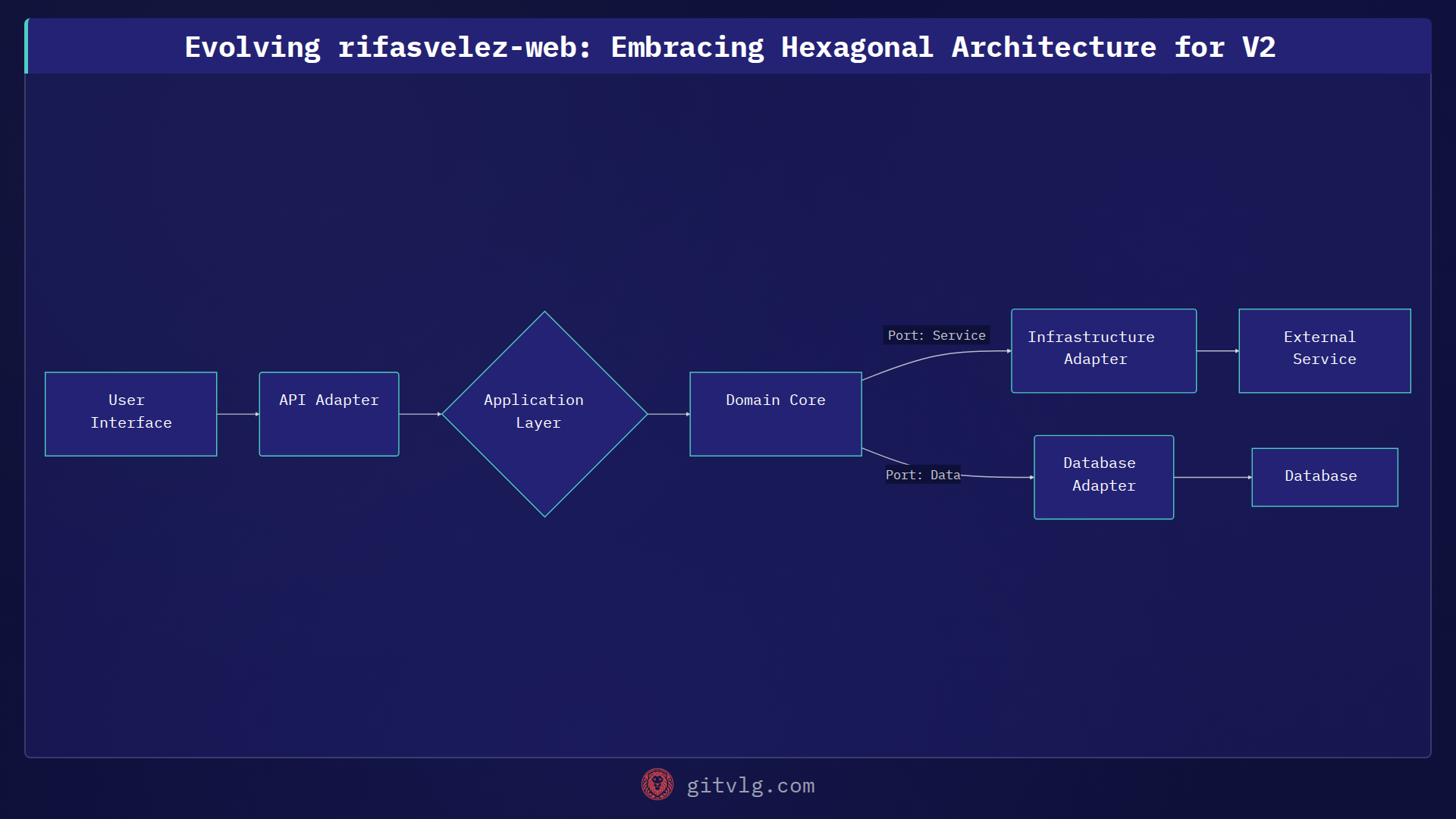

The V2 update for rifasvelez-web implemented Hexagonal Architecture by defining clear 'ports' for our application's core logic. These ports are interfaces that our domain expects to interact with (e.g., UserRepository, PaymentGateway). 'Adapters' then implement these ports, connecting the domain to specific technologies. For example, a DatabaseUserRepository adapter would implement the UserRepository port using a specific database technology, while a MockUserRepository could be used for testing. This approach allows our core business rules to remain pure and independent.

// Core Domain: Defines a Port (interface)
interface IUserService {
    getUserById(id: string): User;
    saveUser(user: User): void;
}

// Application Service (uses the Port)
class UserApplicationService {
    constructor(private userService: IUserService) {}

    retrieveUser(id: string): User {
        return this.userService.getUserById(id);
    }
}

// Infrastructure: An Adapter implements the Port
class DatabaseUserService implements IUserService {
    getUserById(id: string): User {
        // Logic to fetch from database
        console.log(`Fetching user ${id} from DB`);
        return { id: id, name: "Example User" };
    }
    saveUser(user: User): void {
        // Logic to save to database
        console.log(`Saving user ${user.id} to DB`);
    }
}

// The application assembles by injecting the adapter
const dbUserService = new DatabaseUserService();
const appService = new UserApplicationService(dbUserService);
appService.retrieveUser("123");

The Lesson

Adopting Hexagonal Architecture in rifasvelez-web V2 has reinforced the importance of architectural intentionality. By strictly separating our core domain from external concerns, we've gained a codebase that is more resilient to change, easier to test, and significantly more scalable. This ensures that future enhancements, whether they involve new UI frameworks (like React or Astro for the frontend) or different database technologies, can be integrated with minimal impact on our core business logic. The actionable takeaway: Invest in defining clear architectural boundaries early on. Your future self, and your team, will thank you.
